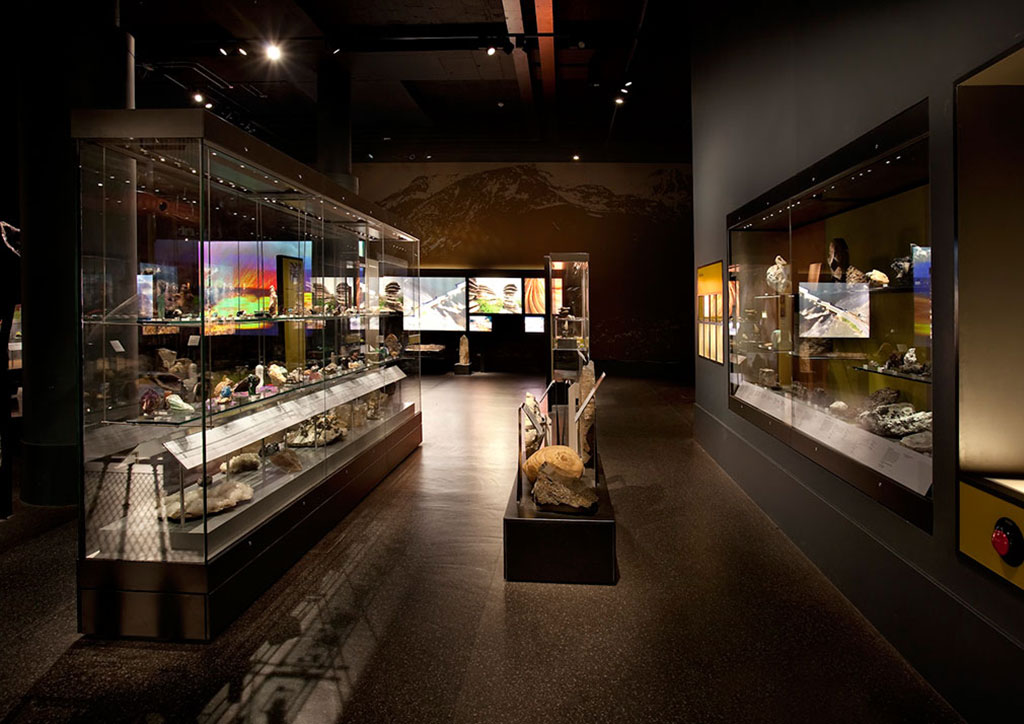

Museum & Gallery Lighting by Universal Fibre Optics

Contemporary Display Lighting Systems


Fibre Optic Harnesses for Display Applications


Universal Fibre Optics are Europes largest manufacturer of bespoke fibre optic harnesses for display lighting.

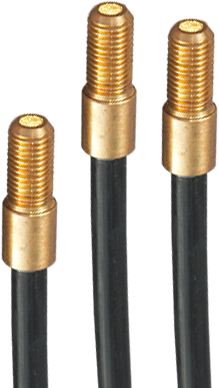

Glass fibre harnesses are made up of tails which contain many fine glass fibres sheathed in a black coloured low smoke material. The ends are finished with crimp terminations for the smallest diameters and with brass or stainless steel ferrules for larger diameters.

Because the glass fibres in each tail are very fine they can be mixed-up in the common end (known as randomising) to give a more even light output between individual ends.

SIZE APPROX ACTIVE DIAMETER APPROX OUTER DIAMETER MAX NO TAILS MIN BEND RADIUS TERMINATION TYPE(S)
1 1mm 2.3mm 400 7mm Crimp
1.5 1.5mm 2.7mm 270 8mm Crimp/Tube
1.8 1.8mm 2.6mm 160 10mm Crimp/Tube
2 2mm 2.8mm 135 15mm Crimp/3mm/Tube
8 3mm 4.9mm 68 18mm M8/M10 Ferrule
12 4.3mm 6.4mm 38 20mm M8/M10 Ferrule
18 5mm 7.4mm 25 40mm M8/M10 Ferrule
24 6mm 8.7mm 17 50mm M8/M10 Ferrule
36 7.3mm 10.1mm 12 70mm M10 Ferrule

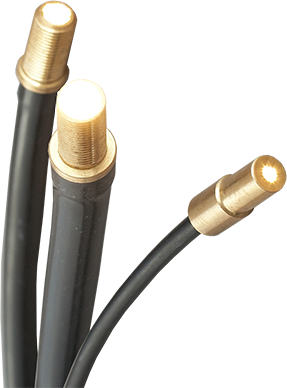

End emitting PMMA fibre for use in display applications.

End lit PMMA fibre comes in two configurations - single sheathed or unsheathed strands of 0.75mm, 1mm, 1.5mm or 2mm diameter fibre, or as multiple sheathed strands of 0.75mm fibre.

Single strands of fibre give starry points of light and normally require no termination, whilst multi-stranded varieties are normally terminated with a ferrule to allow the attachment of an end fitting.

STRANDS ACTIVE DIAMETER APPROX OUTER DIAMETER MAX NO TAILS MIN BEND RADIUS TERMINATION TYPE(S)
1 0.75mm unsheathed/2mm 1100 10/15mm -/Crimp
1 1mm unsheathed/2.2mm 560 15/20mm -/Crimp
1 1.5mm unsheathed/2.6mm 250 25/40mm -/Crimp
1 2mm unsheathed/3mm 159 30/60mm -/Crimp
7 2.3mm 4.5mm 115 20mm -/M8/M10 Ferrule
12 3.1mm 4.5mm 65 25mm -/M8/M10 Ferrule
25 4.3mm 6.3mm 38 30mm -/M8/M10 Ferrule
33 5mm 7.1mm 25 50mm -/M8/M10 Ferrule
50 6mm 8.7mm 17 60mm -/M8/M10 Ferrule
67 7mm 10.5mm 12 80mm -/M10 Ferrule
75 7.5mm 10.5mm 11 90mm -/M10 Ferrule
88 8mm 10.5mm 10 100mm -/M10 Ferrule
