Museum & Gallery Lighting by Universal Fibre Optics

The UFO 19MView | Download Datasheet

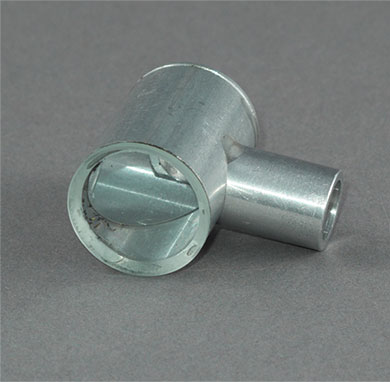

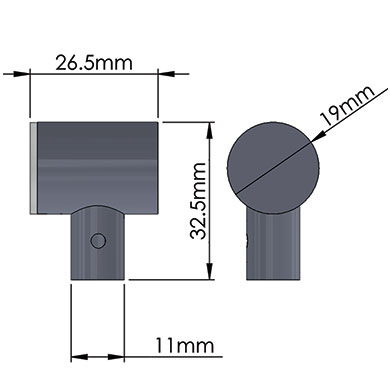

The UFO 19M is a round mirror fitting with a glazed front for use where an overall depth of 27mm can be accommodated. The fitting delivers light at a 90 degree angle to the run of the fibre tail.

The 19M is suitable for use in situations where there is enough room and where a glazed front is needed either for aesthetic purposes or to prevent dust ingress.

The UFO 26MView | Download Datasheet

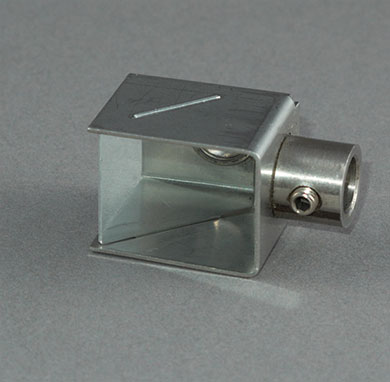

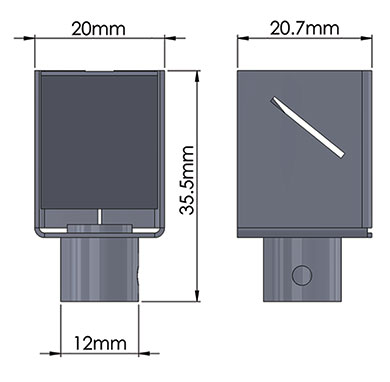

The UFO 26M is a rectangular mirror fitting with an open front for use where an overall depth of 20mm can be accommodated. The fitting delivers light at 90 degrees from the run of the fibre tail.

The 26M is suitable for use in situations where there is very limited depth to mount the fitting. At close range the fitting can give a slightly rectangular light pattern.

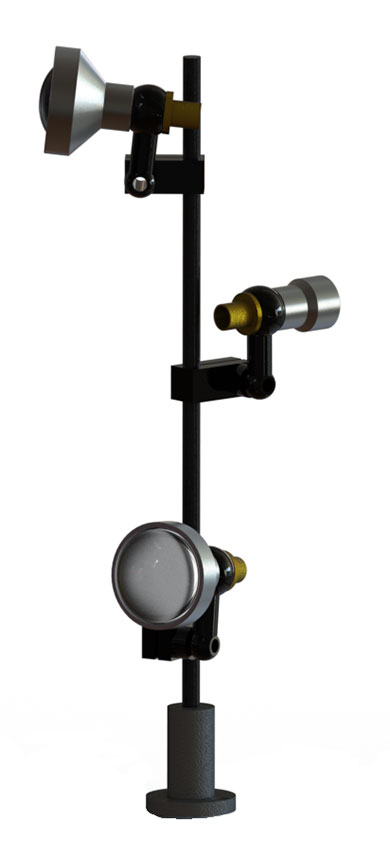

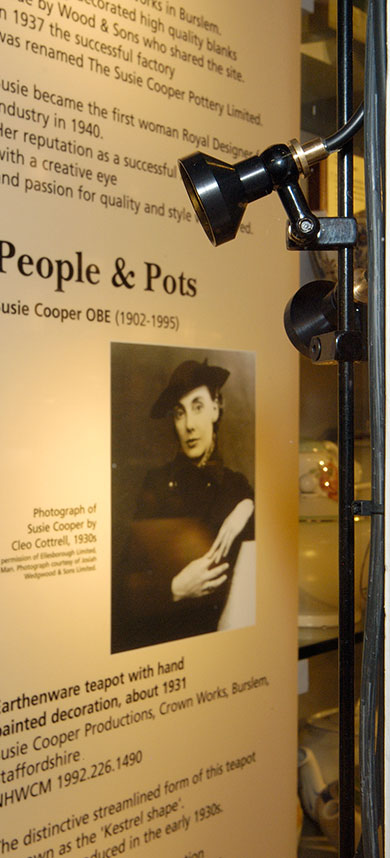

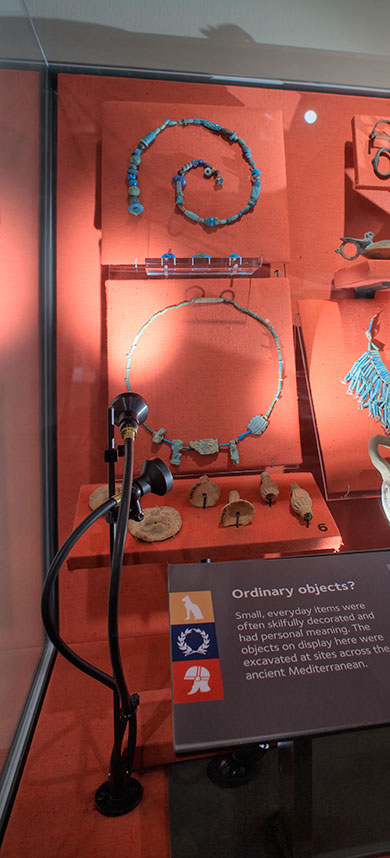

The UFO Rod and Clamp System

The rod and clamp assembly allows fibres and lenses to be mounted to a shelf or to the bottom of a cabinet.

Rods are made to a customers specified length and come as standard in black, although we can powdercoat them to any specified RAL colour if required.

The assembly is typically mounted using a foot on the top or the underside of the mounting surface.

Depending on the length of rod used, a number of lenses can be supported. Each lens requires a separate fibre tail to be run to it.

Mini Crooks

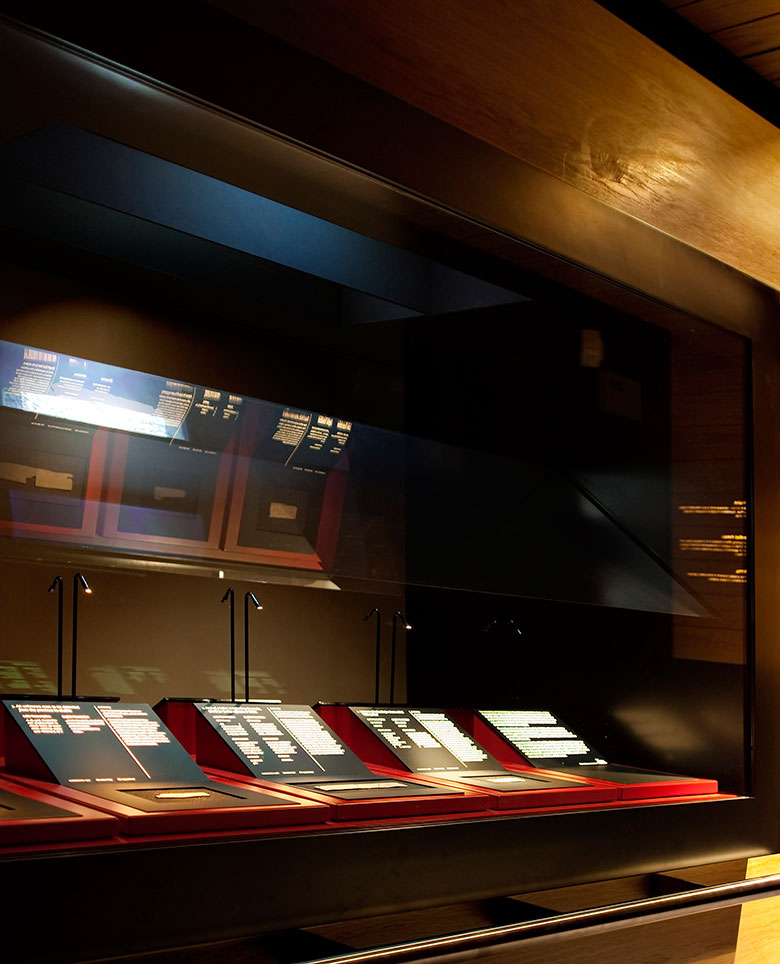

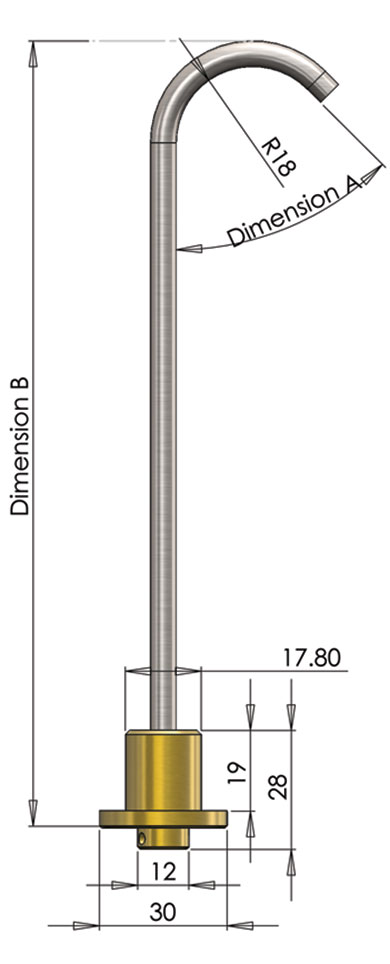

UFO mini crooks are an optional termination to a fibre tail which holds the fibre at an angle from vertical and is useful for lighting static arrangements of items.

Standard crooks are availalbe in four configurations - see table below - however they can also be cut to your required length if necessary.

Crooks are supplied as an integral part of a fibre optic harness and are not an interchangeable fitting.

Standard Product Variations Refer to diagram above for dimension positions
